HS-P104M

hs fpv drone kit HS-P104M 10-inch fpv drone with camera and 4x 3115-900kv motors, capable of lifting up to 3-6 kg for high speed long range FPV flight
3kg

Rated Payload

4kg

Max Payload

6kg

Max take-off weight

10km+

Max Remote Control Distance

153km/h

Max Horizontal Flight Speed
(at sea level, < 2nd wind level)

15m/s

Max ascent speed

HS-P104M

hs fpv drone kit HS-P104M 10-inch fpv drone with camera and 4x 3115-900kv motors, capable of lifting up to 3-6 kg for high speed long range FPV flight

PARAMETERS

AIRCRAFT CONFIGURATION

  • DimensionL15.3'' * W15.3'' * H2.36''
  • Flight ControlF405
  • ESC60A Split ESC *4
  • Motor3115-900kv
  • Propeller1050-3
  • Input Voltage3S-6S LiPo battery
  • Recommended Battery6S 10000mah 75C LiHV

CAMERA PARAMETERS

  • Sensor1/4'' Inch sensor
  • Horizontal resolution1200TVL
  • Video Ratio16:9
  • Lens2.1mm
  • FOVH 100° V70°

TRANSMISSION PARAMETERS (OPTIONAL)

  • Operating Frequency5362-5880Mhz
  • Output Power25mW/1.6W/2W/2.5W/3W

RECEIVER PARAMETERS (OPTIONAL)

  • Frequency915MHz
  • Refresh rate25Hz-200Hz

PRPDUCT DISPLAY

rtf fpv drone kit HS-P104M 10-inch fpv drone with camera, 4x 3115-900kv motors and 20k mAh LiPo battery leftside show
rtf fpv drone kit HS-P104M 10-inch fpv drone with camera, 4x 3115-900kv motors and 20k mAh LiPo battery topside show
rtf fpv drone kit HS-P104M 10-inch fpv drone with camera, 4x 3115-900kv motors, 20k mAh LiPo battery and carry 6kg box
rtf fpv drone kit HS-P104M 10-inch fpv drone with camera, 4x 3115-900kv motors, 20k mAh LiPo battery and lifting 6kg weight box

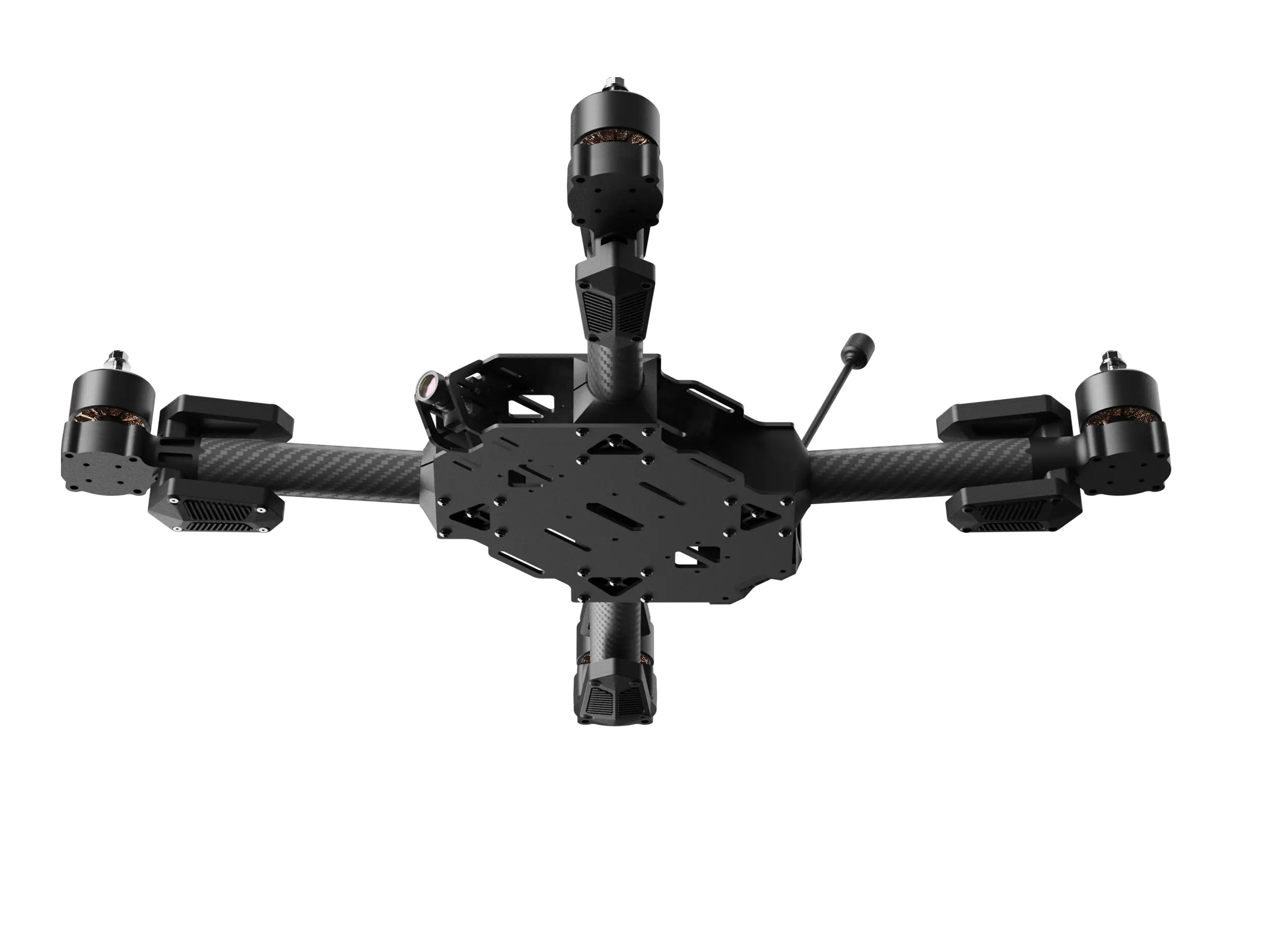

rtf fpv drone kit HS-P104M 10-inch fpv drone with camera and 4x 3115-900kv motors frame height show

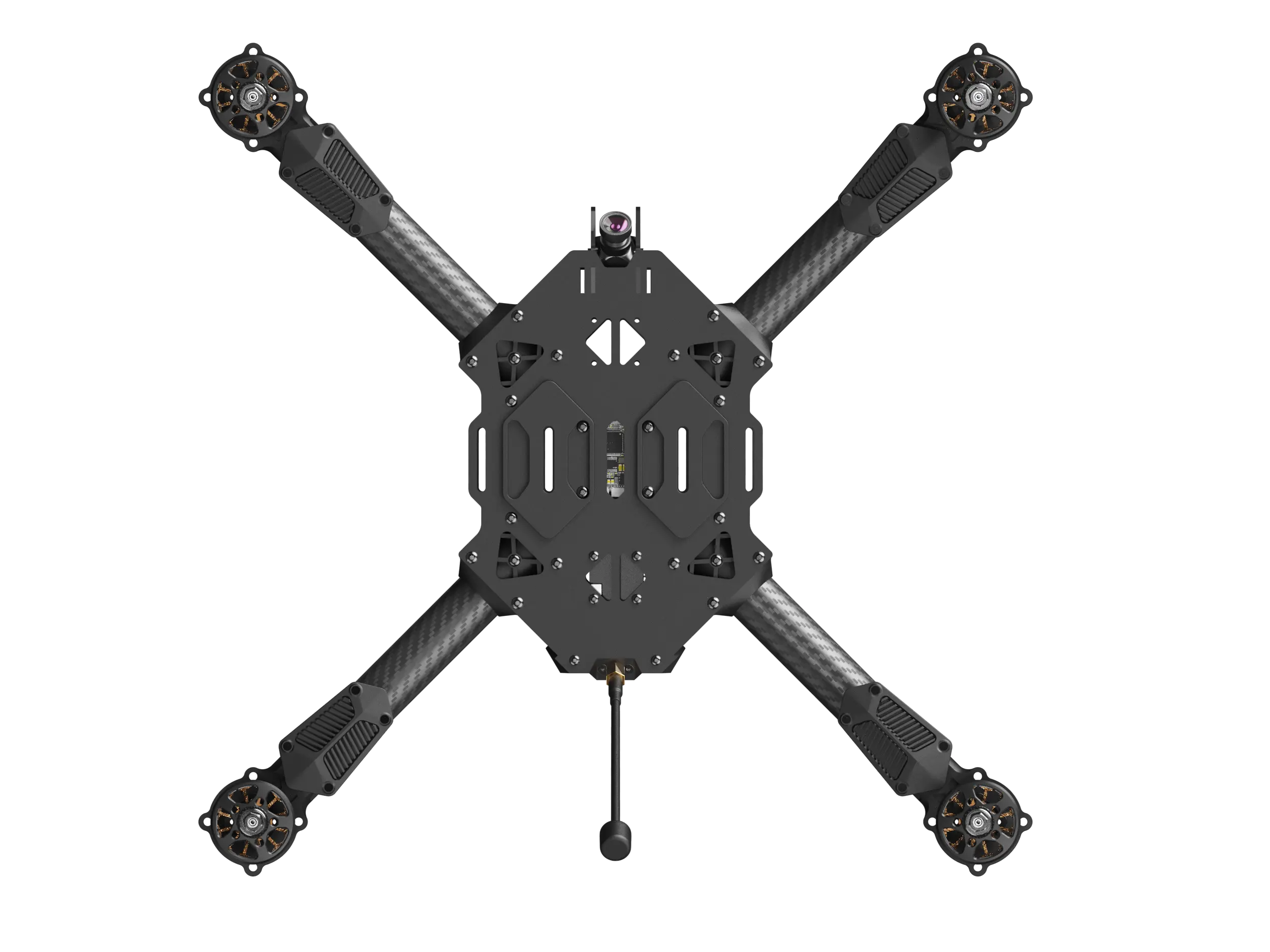

rtf fpv drone kit HS-P104M 10-inch fpv drone with camera and 4x 3115-900kv motors frame dimension
rtf fpv drone kit HS-P104M 10-inch fpv drone with camera, 4x 3115-900kv motors and 20k mAh LiPo battery leftside show
rtf fpv drone kit HS-P104M 10-inch fpv drone with camera, 4x 3115-900kv motors and 20k mAh LiPo battery topside show
rtf fpv drone kit HS-P104M 10-inch fpv drone with camera, 4x 3115-900kv motors, 20k mAh LiPo battery and carry 6kg box
rtf fpv drone kit HS-P104M 10-inch fpv drone with camera, 4x 3115-900kv motors, 20k mAh LiPo battery and lifting 6kg weight box
rtf fpv drone kit HS-P104M 10-inch fpv drone with camera and 4x 3115-900kv motors frame height show
rtf fpv drone kit HS-P104M 10-inch fpv drone with camera and 4x 3115-900kv motors frame dimension

Comparison Table of Core Parameters

COPMARISON
CHART

 HS-P106M 10-inch FPV Drone with 6 motors

HS-P106M

 HS-P134M 13-inch FPV Drone with 4 motors

HS-P134M

 HS-P136M 13-inch FPV Drone with 6 motors

HS-P136M
Dimension L23'' * W20.6'' * H2.36'' L17.3'' * W17.3'' * H2.4'' L32'' * W28.4'' * H2.64''
Rated Payload 4kg 6kg 8.5kg
Maximum Payload 5kg 7kg 9.5kg
MaximumTake-off Weight 8.5kg 11.5kg 14.5kg
Maximum Remote Control Distance 10km+ 10km+ 10km+

Maximum Horizontal Flight Speed (at sea level, <2nd wind level)

 145km/h 130km/h 140km/h
Maximum Ascent Speed 15m/s 12m/s 12m/s
